When it comes to purchasing curtain wheels and tracks, one of the most common mistakes homeowners and contractors make is selecting the wrong size. Whether you’re looking for aluminum curtain runners wholesale or individual units, understanding proper measurement and compatibility is crucial. In this comprehensive guide, we’ll walk you through everything you need to know about selecting the perfect curtain runner for your tracks.
Understanding Curtain Runner Sizes
Professional curtain runners come in different specifications to accommodate various track systems. The most common configurations include wheel diameters of 1.5mm and 1.1mm widths. However, the wheel diameter isn’t the only measurement that matters. The center shaft width, track inner height, and spacing width all play critical roles in determining compatibility.
When sourcing aluminum curtain runners wholesale, suppliers typically offer detailed dimension specifications for each model. Understanding these measurements ensures you select runners that will function smoothly and quietly without friction or jamming.
Key Measurements You Need to Know
Before purchasing any curtain wheel runners, you need to measure three critical dimensions on your existing track:

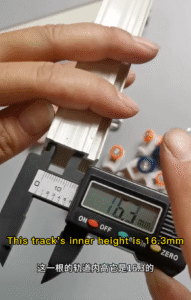

1. Inner Height: This measurement represents the interior height of your track profile. For example, a track might have an inner height of 16.3mm. This dimension must be larger than the wheel diameter.

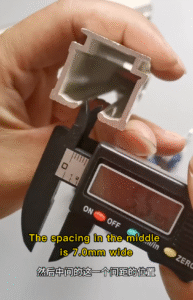

2. Spacing Width: This is the gap or opening in the middle section of your track. A typical measurement might be 7.0mm wide. Your runner’s center shaft must fit comfortably through this space without touching the sides.
3. Center Shaft Width: This is the thickness of the roller’s axle. Premium aluminum curtain runners wholesale options typically feature center shafts measuring between 5.8mm to 5.9mm for standard sizes, and around 4.5mm for smaller models.
Compatibility Rules for Curtain Runners
To ensure your selected runners work perfectly with your track system, follow these essential compatibility rules:

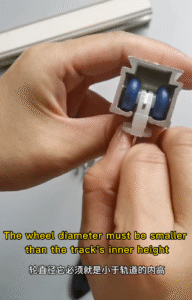

- The wheel diameter must be smaller than the track’s inner height. If the wheel is too large, it won’t fit through the track at all.
- The center shaft width must be smaller than the track’s spacing width. This prevents friction and ensures smooth operation. When the runner passes through the track section, it shouldn’t make contact with the track walls.
- Both measurements must be respected. If either the inner height or spacing is too small for your runner, it simply won’t work. This is why taking accurate measurements before purchasing is absolutely essential.
Example Compatibility Scenarios
Scenario 1 – Standard Size: A track with 16.3mm inner height and 7.0mm spacing works perfectly with 1.5mm diameter wheels that have a 5.85-5.9mm center shaft. The wheel fits comfortably inside, and the shaft passes smoothly through the middle opening.
Scenario 2 – Smaller Size: A track with 14.7mm inner height and corresponding narrower spacing pairs ideally with 1.1mm diameter wheels featuring a 4.5mm center shaft. Again, perfect compatibility is achieved with proper measurement matching.
Why Universal Solutions Don’t Work
One of the most important points to understand about aluminum curtain runners wholesale is that there is no “one-size-fits-all” solution. Track systems vary significantly in their dimensions. Some are designed as square-profile tracks (方轨), while others have different cross-sections. Similarly, wheel runners come in various sizes to match these different track profiles.
This is why manufacturers typically offer different models and why proper measurement is non-negotiable. When purchasing in bulk for wholesale purposes, always verify that each batch matches your specific track requirements.
Quality Features of Professional Curtain Runners
When selecting aluminum curtain runners wholesale, look for these quality indicators:
Stainless Steel Construction: Integrated stainless steel frames provide durability and corrosion resistance, making them ideal for long-term use.
Silicone Wheel Material: The outer wheels should be made of high-quality silicone material. This provides several advantages: smooth gliding action, resistance to wear, and quiet operation. Quality silicone wheels produce minimal noise, which is crucial in residential applications.
Precision Manufacturing: Professional-grade runners have precisely marked dimensions and tight tolerances, ensuring consistency across batches.
Step-by-Step Selection Process
Measure your track’s inner height carefully
Measure the spacing width in the middle section
Compare these measurements with the runner specifications
Verify that the wheel diameter is smaller than the track height
Verify that the center shaft is smaller than the spacing width
If both conditions are met, you’ve found your match
Common Mistakes to Avoid
- Assuming all curtain runners fit all tracks
- Not measuring before ordering
- Ignoring the center shaft dimension
- Purchasing based on wheel diameter alone
- Ordering in bulk without verifying specifications with samples
Conclusion
Selecting the right aluminum curtain runners wholesale requires attention to detail and accurate measurements. Whether you’re installing new curtains at home or sourcing components for commercial projects, always measure your track first, verify compatibility, and choose quality runners with proper bearing systems and silicone wheels.
Remember: proper sizing ensures smooth operation, extends the lifespan of your curtain system, and provides the quiet, frictionless performance you expect.
